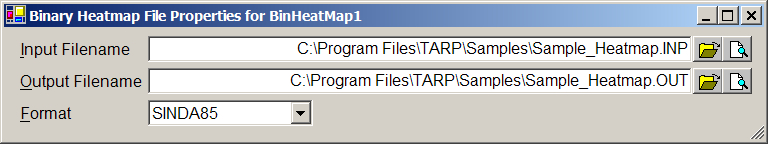

TARP Pro - Binary Heatmaps
Binary HeatMap Files (BHF) are an alternative to storing HeatMap data on Excel Worksheets - The same outputs are needed from the Thermal Solver (T, Q, G)
Data from the BHF is read into the HeatMap workbook resulting in much faster generation of HeatMaps, particularly for larger models - Test case of over 300K conductors took 1.5 hours with data stored on Worksheets and less than 8 minutes with the BHF format
Ouput support for Sub-Network - Nodes/Groups added to Object - Sub-Network further includes all connected nodes - May trace up to 5 connection levels, termination at boundaries
Link between Excel file and BHF is based on filename - Multiple BHF files may be created
- They can be accessed simply by changing the name of the Excel workbook
